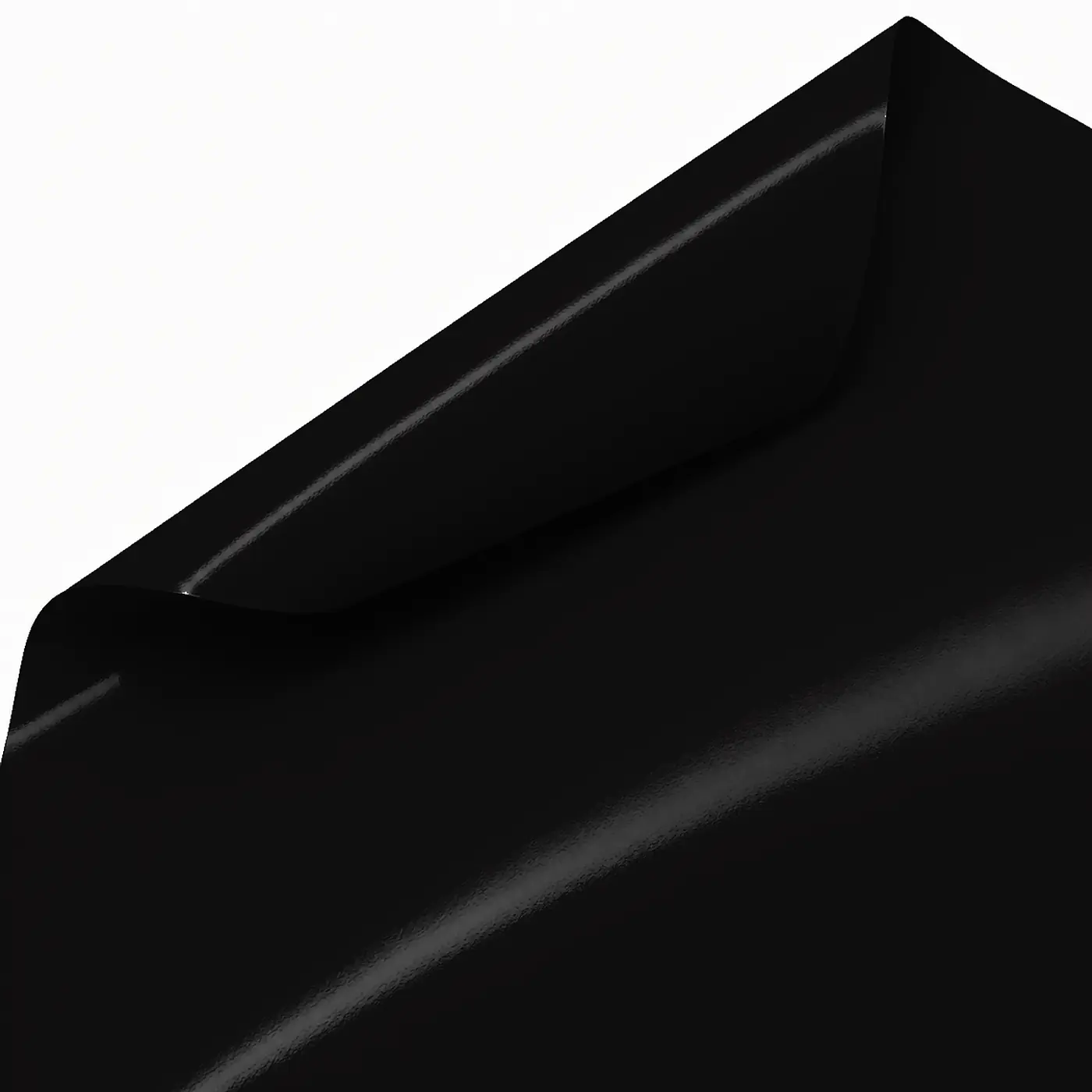

More information about ORACAL 751 070 G Glossy Black
ORACAL 751 070 G Glossy Black is a cast high-performance PVC film for plotter applications. The deep black, high-gloss shade is suitable for lettering, markings and decorations.
The film is available in a width of 126 cm and can be ordered in selectable running-meter lengths from 1 to 50 Lfm. According to ORAFOL, ORACAL 751C was also developed for high-quality vehicle and transport advertising.
- Color code: 070 G, black, glossy surface
- Cast PVC plotter film with permanent adhesive strength
- For black/white: durability of up to 8 years under vertical outdoor weathering in a Central European standard climate
| Resistance to cleaning agents |
No change | bonded to aluminum |
|---|---|
| Durability |
under vertical outdoor weathering, Central European standard climate
|
| Shelf life |
2 year(s) | in original packaging, at 20 °C and 50% relative humidity |
| Solvent/chemical resistance |
Oils,
|
| Maximum shrinkage |
Maximum shrinkage lengthwise 0.15 mm
|
| Elongation at break |
Minimum elongation at break lengthwise 120 %
|
| Tensile strength |
Minimum tensile strength lengthwise: 19 N/mm²
|
| Seawater resistance |
No change | after 100h/35°C | bonded to aluminum, DIN EN ISO 9227 |
| Temperature resistance |
Minimum temperature: -40 °C
|
| Water resistance |
Recommended | at 23° C, bonded to aluminum | no change after 100h |
| Adhesive power |
18 N/25 mm | after 24h, stainless steel | FINAT TM 1, average value |
| Adhesive power level |
Permanent |
| Recommended printing procedure |
Digital thermal transfer printing |
| Application temperature |
Minimum temperature 10 °C |
| Thickness |
0.06 mm | average value, without backing paper and adhesive |
| Format |
Roll |
| Standard width |
1260 mm
|
| Standard length |
50 m |
ORACAL 751C – cast premium film for vehicles and long-term applications
ORAFOL Adhesive Films – Professional Film Solutions for Advertising and Design
