More information about Oracal 6510 069 G Green Fluorescent Glossy

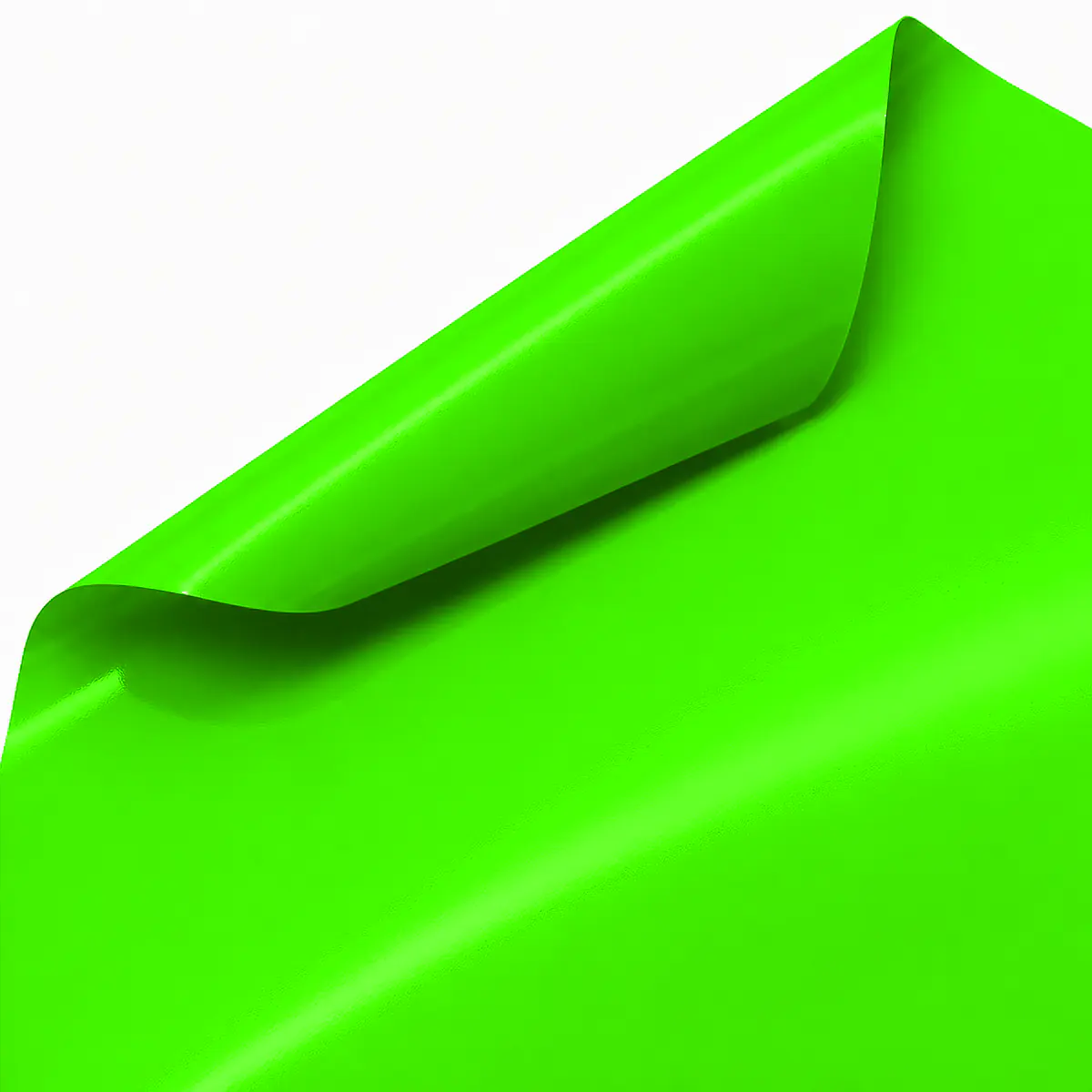

Oracal 6510 Green Fluorescent Glossy is a plotter film > neon film from the Klebefolien Express range.
The product is available in widths of 100 cm and 126 cm and in selectable lengths of 1 running metre, 2 running metres, 3 running metres, 4 running metres, 5 running metres, 10 running metres, 15 running metres, 20 running metres, 25 running metres, 30 running metres, 35 running metres, 40 running metres, 45 running metres and 50 running metres.
- Net price calculation per square metre
- Selection by width and running-metre length
- Colour and surface finish according to manufacturer data
| Durability |
under vertical outdoor weathering, Central European normal climate
|
|---|---|
| Shelf life |
2 year(s) | in original packaging, at 20 °C and 50% relative humidity |
| Maximum shrinkage |
Maximum shrinkage longitudinally 0.3 mm
|
| Elongation at break |
Minimum elongation at break longitudinally 100 %
|
| Tensile strength |
Minimum tensile strength longitudinally: 13 N/mm²
|
| Seawater resistance |
no change | after 100h/35°C | applied to aluminium, DIN EN ISO 9227 |
| Temperature resistance |
Minimum temperature: -40 °C
|
| Adhesive power |
16 N/25 mm | after 24h, stainless steel | FINAT TM 1, average value |
| Adhesive power level |
Permanent |
| Recommended printing procedure |
Screen printing |
| Application temperature |
Minimum temperature 10 °C |
| Thickness |
0.11 mm | average value, without backing paper and adhesive |
| Format |
Roll,
|
| Standard width |
1260 mm
|
| Standard length |
50 m |
| Standard sheet dimensions |
700 mm
|
ORACAL 6510 – fluorescent neon film with high visibility
ORAFOL Adhesive Films – Professional Film Solutions for Advertising and Design
