More information about ORACAL 751 335 G Mars Red Glossy

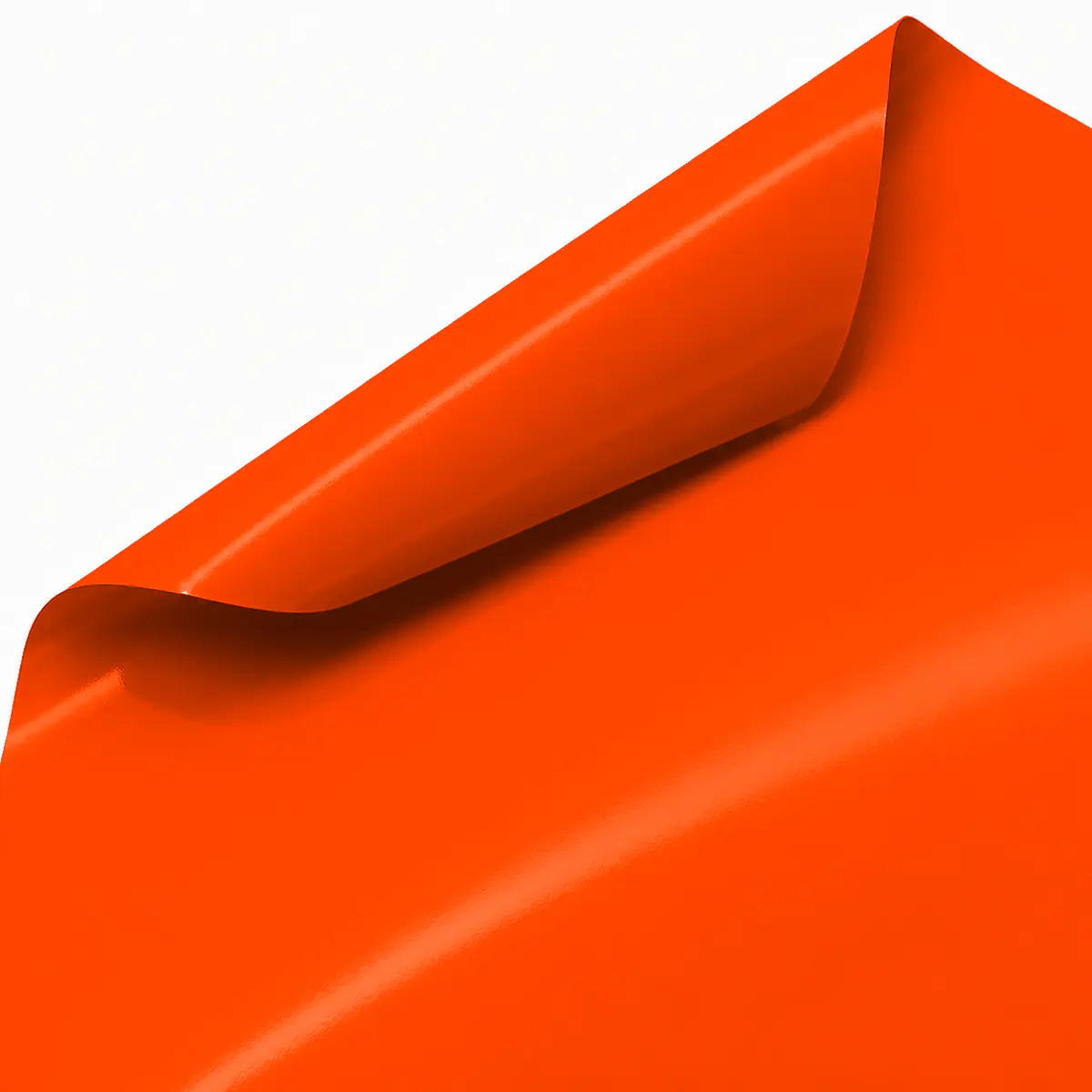

ORACAL 751 335 G Mars Red Glossy is a high-performance cast PVC film for plotter applications. According to ORAFOL, the warm Mars red tone is listed as a glossy color variant with sRGB 226 60 0.
The film is designed for lettering, markings and decorations and, according to the manufacturer, can be applied to painted flat, uneven and curved surfaces, as well as in recesses and over rivets. It is available in a width of 126 cm and in selectable running-meter lengths from 1 to 50 Lfm.
- Series: ORACAL 751 High Performance Cast, cast PVC plotter film
- Color: 335 G Mars Red, glossy surface
- For colored variants: durability of up to 7 years with vertical outdoor exposure in a Central European normal climate
| Resistance to cleaning agents |
No change | applied to aluminum |
|---|---|
| Durability |
with vertical outdoor exposure, Central European normal climate
|
| Shelf life |
2 year(s) | in original packaging, at 20 °C and 50% relative humidity |
| Solvent/chemical resistance |
Oils,
|
| Maximum shrinkage |
Maximum longitudinal shrinkage 0.15 mm
|
| Elongation at break |
Minimum longitudinal elongation at break 120 %
|
| Tensile strength |
Minimum longitudinal tensile strength: 19 N/mm²
|
| Seawater resistance |
No change | after 100h/35°C | applied to aluminum, DIN EN ISO 9227 |
| Temperature resistance |
Minimum temperature: -40 °C
|
| Water resistance |
Recommended | at 23° C, applied to aluminum | no change after 100h |
| Adhesive power |
18 N/25 mm | after 24h, stainless steel | FINAT TM 1, average value |
| Adhesive power level |
Permanent |
| Recommended printing procedure |
Digital thermal transfer printing |
| Application temperature |
Minimum temperature 10 °C |
| Thickness |
0.06 mm | average value, without backing paper and adhesive |
| Format |
Roll |
| Standard width |
1260 mm
|
| Standard length |
50 m |
