More information about ORACAL 751C 048 G Bordeaux Glossy

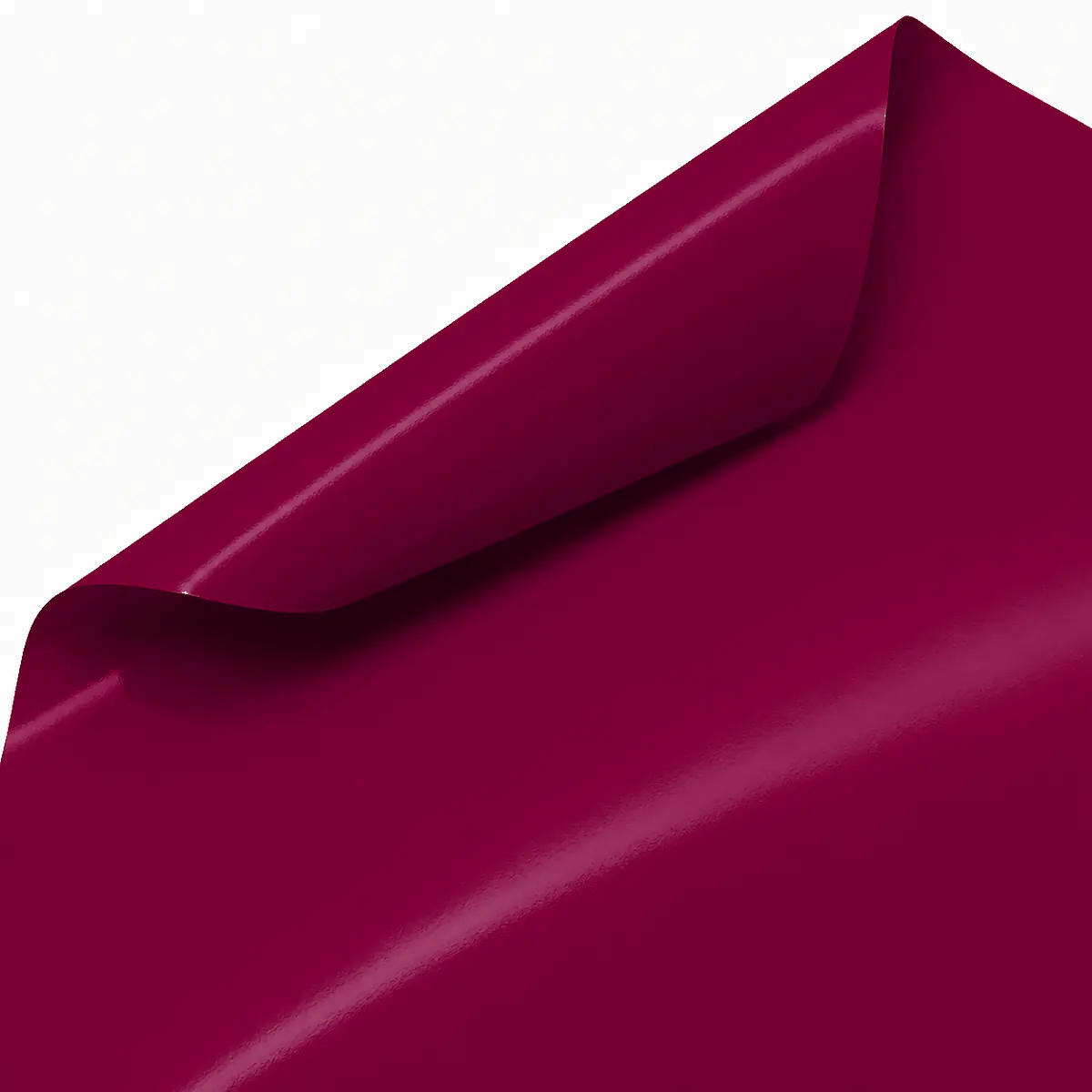

ORACAL 751C High Performance Cast in 048 G Bordeaux Glossy is a cast high-performance PVC film for plotter applications. The dark Bordeaux shade is suitable for lettering, markings and decorations with a high-quality glossy finish.
The film is specially designed for vehicle and transport advertising and, thanks to its special adhesive, can also be applied to painted, flat, uneven or curved surfaces, as well as into recesses and over rivets. Available in a width of 126 cm and selectable running-metre lengths from 1 to 50 Lfm.
- Color code: 048 G Bordeaux, glossy
- Cast high-performance PVC film for plotter applications
- For colored variants: up to 7 years' durability under vertical outdoor exposure in a Central European normal climate
| Resistance to cleaning agents |
No change | applied to aluminum |
|---|---|
| Durability |
under vertical outdoor exposure, Central European normal climate
|
| Shelf life |
2 year(s) | in original packaging, at 20 °C and 50% relative humidity |
| Solvent/chemical resistance |
Oils,
|
| Maximum shrinkage |
Maximum shrinkage lengthwise 0.15 mm
|
| Elongation at break |
Minimum elongation at break lengthwise 120 %
|
| Tensile strength |
Minimum tensile strength lengthwise: 19 N/mm²
|
| Seawater resistance |
No change | after 100h/35°C | applied to aluminum, DIN EN ISO 9227 |
| Temperature resistance |
Minimum temperature: -40 °C
|
| Water resistance |
Recommended | at 23° C, applied to aluminum | no change after 100h |
| Adhesive power |
18 N/25 mm | after 24h, stainless steel | FINAT TM 1, average value |
| Adhesive power level |
Permanent |
| Recommended printing procedure |
Digital thermal transfer printing |
| Application temperature |
Minimum temperature 10 °C |
| Thickness |
0.06 mm | average value, without release liner and adhesive |
| Format |
Roll |
| Standard width |
1260 mm
|
| Standard length |
50 m |
ORACAL 751C – cast premium film for vehicles and long-term applications
ORAFOL Adhesive Films – Professional Film Solutions for Advertising and Design
